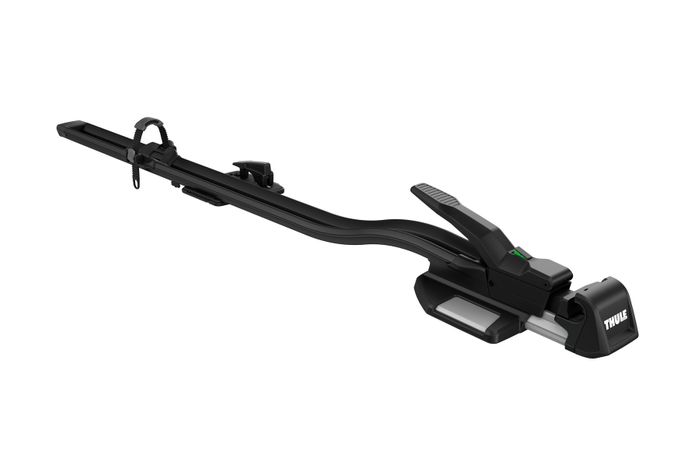

Thule Topride 568 Bike Carrier Black
Thule TopRide- Roof mount bike rack
You May Also Like...
-
Thule wheel carrier 545-2
Features:
- Possible to fold down towards the roof when not in use.
- The perfect accessory for Thule OutRide 561
Carrier for the front wheel with regular axle or wheels with disc brakes. T-track adapters (20x20mm) are included for mounting on Thule WingBar Edge, Thule WingBar, Thule SlideBar, and Thule AeroBar
Fits up to 29" wheels
$169.00 -
The unique Yakima ForkChop is a highly versatile fork mount bike carrier. It transports virtually any bike, including both quick release and thru-axles, and does it all without touching the bike frame. The ForkChop even fits 15mm thru-axle fat bikes out of the box or 9mm x 135mm with the optional Fat Bike QR Locking Skewer accessory. The split design makes it ideal for use with a cargo basket or for a minimalist look on your vehicle's roof rack.
FEATURES:
Securely carries a variety of bike styles with no frame contact
Interchangeable inserts work with most axle configurations including quick release (9 mm) and thru-axles (12 x 100 mm, 15 x 100 mm, 15 x 110 mm, 15 x 135/142/150mm)
Split design gives a minimalist appearance and creates increased functionality when used with cargo baskets
Tool-free, universal mounting hardware fits most roof racks
Fully assembled out-of-the box
Optional Fat Bike QR Locking Skewer makes the rack compatible with 9mm x 135 mm fat bikes (sold separately)
Add SKS locks (2) to secure your bike to the rack and the rack to the vehicle (sold separately)
Fitting:
Crossbar spread must be ±25cm (±10”) of your bike wheelbase for proper use.
Crossbars must be a minimum 81cm (32”) apart.
For some vehicles with fixed point roof rack mounting, the minimum spread is wider than the fixed points, which cannot be adjusted.
Maximum spread of 127cm (50”) apart.
Reverse the rear wheel tray for a shorter crossbar spread.
- Reverse the head unit if there is interference between your fork and/or brake calipers.
GENERAL INFORMATION:
WEIGHT: 1.6 kg
DIMENSIONS: 178mm L x 127mm W x 89mm H
CAPACITY: 1 bike up to 18 kg$189.00 -
The Rhino Pioneer Thru Axle Bike Carrier allows you to attach a thru axle bike directly to a Pioneer system. Designed for strength and durability, it firmly secures your bike whilst reducing any sway and rocking created when driving. The bike mount comes with 15mm x 100mm thru axle insert, with additional sizes available for purchase.
Featuring easy installation, and quick installation, using your existing bike skewer and a quick release strap to safely secure the rear tyre. The mount secures to the Pioneer channels allowing full placement flexibility. The front mount can be turned around to offset handlebars when carrying two bikes if carrying three or more bikes every second mount can be installed back to front to allow for maximum space.
Features:
- Compatible with all Rhino-Rack Pioneer systems.
- The housing is constructed using a satin black powder coated steel
- The inserts are blue anodised aluminium to prevent rusting
- Pre-assembled
- 15mm x 100mm Multi-Axle Adaptor included
- Compatible with all other Rhino-Rack Thru Axle inserts (view product compatibility for insert sizes)
- All fixings and tools included
- Quick and easy installation/removal
- The fork carrier can be rotated to prevent handlebars clashing
- Rear wheel carrier can be flipped to fit on smaller trays
- Rear wheel strap fits all wheel dimensions
- Front mount height: 95mm
- Rear mount height (without strap): 98mm
- Maximum on-road weight allowance: 17kg/37lbs
- Maximum off-road weight allowance: 11kg/24lbs
- Not suitable for electric bikes (e-bikes)
Bike Types- Disc Brakes
- Kids bike
- Mountain bike
- Race bike
- Wide Tyres
Mount Style- Front Wheel off
Product Weight- 2.0 kg
Warranty- 3 Years
$179.00 -
The Thule 598 Bike carrier Twin Pack Silver comes with two 598 silver bike carriers.
We have one keyed it with the same lock for your convenience, no messing around trying to work out what key is for what bike carrier.
We have also set them up for you so that they are ready to go straight into your T slot in your roof rack straight from the box.
And because we know that you would rather be out riding than working out how to install them we've flipped one so you can load one form the passenger side and one from the driver’s side.
More about the racks
Upright bike rack for the quickest, most convenient mounting – for bikes up to 20 kg.
Features
- Automatically positions your bike when you secure it, thanks to the uniquely designed frame holder and wheel tray
- Quick and easy bike securing – the torque limiter dial controls the force going into the bike frame with a clear sign of correct mounting
- Pressure is spread via large, soft claw pads that adapt to your bike’s frame tubes – minimizing the risk of frame damage
- Safe mounting – your bike is prevented from falling thanks to the claw’s extended lower jaw
- Stable wheels – firmly fixed in smartly designed wheel holders with diagonal quick-release wheel straps
- Easy, tool-free interface for switching the bike rack from one side of your car to the other
- Pre-assembled, no tools required
- Locks the bike to the bike rack and the bike rack to the roof racks (locks included)
Technical specifications
Load capacity 20 kg Dimensions 145 x 32 x 8.5 cm Weight 4.2 kg Fits round frame dimensions 22-80 mm Fits maximum oval frame dimensions 80x100 mm Max tire width 3 in Max wheel size (diameter) 16-29 in Max wheelbase 1235 mm Thru-axle compatible Yes Carbon frame compatible Yes Adapter/s required: Thule Carbon Frame Protector Fits roof racks with 20x20 mm T-tracks Yes Fits roof racks with 24x30 mm T-tracks Yes Adapter/s required: Thule T-track Adapter 889-1 Fits Thule WingBar Evo Yes Fits Thule WingBar Edge Yes Fits Thule WingBar Yes Fits Thule ProBar Yes Fits Thule SquareBar Yes Adapter/s required: Thule ProRide SquareBar Adapter Fits Thule SlideBar Yes One Key System compatible Yes Color Silver Was:$847.00Now:$750.00Price:$750.00
